lx200dpg

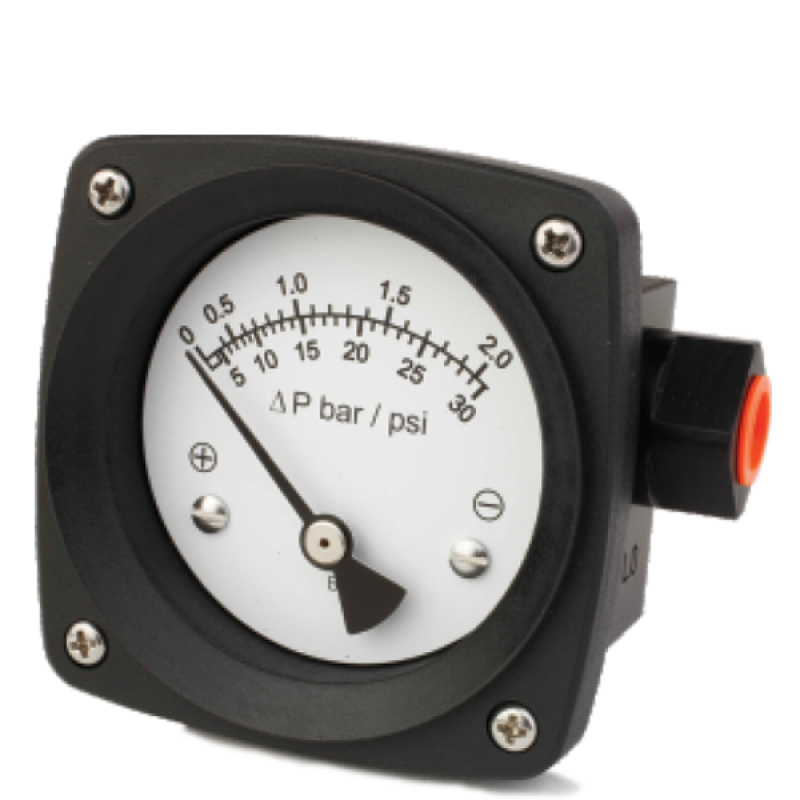

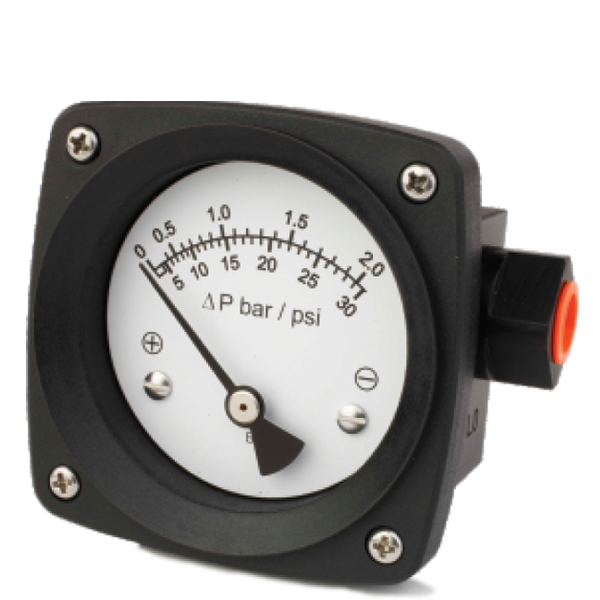

LX200DPG

Piston type indicator, ideal for liquid differential pressure measurement
Rugged magnetic movement
Available in Aluminum, Brass, 316SS & Monel wetted parts
2.5”, 4” & 6” Weatherproof dial cases
Ranges from 0-5 Psid up to 0-1000 Psig
3,000 Psig & 6,000 Psig MAWP
Metric & dual scale Imperial/Metric ranges available

Downloads
pdf LX200DPG
Ask a question about this product

Features:

  • Piston type measurement, allows slight fluid migration across piston seal
  • 3000 Psig MAWP, can over-range or reverse range to full line pressure
  • 6000 Psig MAWP available
  • Aluminum, Brass & 316SS body/trim, other materials on request
  • Available with NEMA 4 & Hazardous Location switches
  • Ranges 0-5 up to 0-150 Psid, special applications up to 0-1000 Psid
  • Available with 2.5”, 4.5” & 6” Engineered Polymer Dial cases
  • Rugged & Reliable
  • Ideal for filter/strainer monitoring

Applications include:

  • Refineries
  • Chemical/Petrochemical Plants
  • Cryogenics
  • Oil/Gas Production
  • Water/Wastewater
  • Pulp/Paper
  • Mining
  • Skid Mounted Process Equipment
