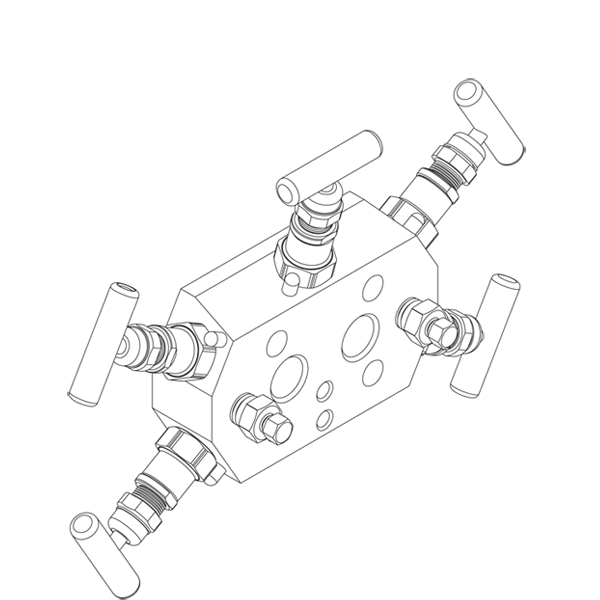

F Style, Flatpack NPT Inlet, Flanged Outlet
PRECISION Flatpack manifolds provide weight & space savings advantages, providing coplanar style mounting for traditional manifolds. Designed & built to provide bubble tight sealing across the pressure/temperature curve.
Features:
- ½” NPT inlet, flanged to mate to transmitter
- Bar stock body equals cost savings
- Flat profile saves weight, space and provides ‘coplanar style’ mounting for traditional transmitters
- 2, 3 & 5 Valve configurations
- Available in 6,000 & 10,000 Psig ratings
- Carbon steel, 316 L SS in stock
- Wide range of materials of construction available
- NPT threads standard, BSP available
- PTFE packing or graphite packing
Applications include:
- Refineries
- Chemical/Petrochemical Plants
- Cryogenics
- Oil/Gas Production
- Water/Wastewater
- Pulp/Paper
- Mining
- Skid Mounted Process Equipment
