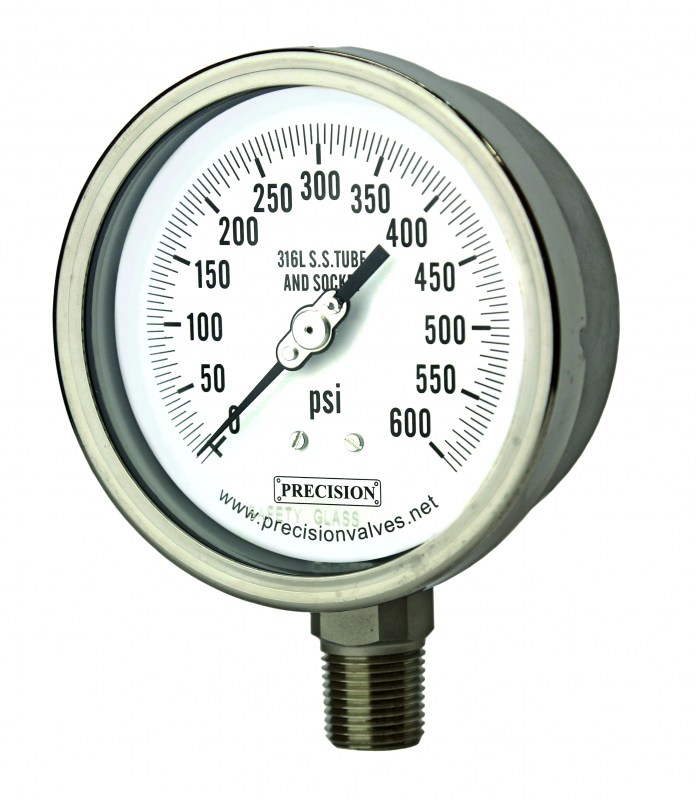

4inch All SS2
  • 2”, 2.5” & 4” Case¹
  • Rugged All SS Construction
  • 316 SS Tube & Socket (NACE Available)
  • 304 SS Movement (316SS Movement Available)
  • Accuracy 2” = 2.5%, 2.5” = 1.6%, 4” = 1%²
  • Micrometer Adjustable Pointer (4” & larger case)
  • Safety Glass Lens
  • Solid Front Rear Blow Out Disc for Safety Available
  • Available Dry, Glycerin Filled & Silicone Filled
  • Ip65 - EN 60529/IEC 529 Ingress Protection
  • Tig Argon Arc Welded Joints
  • Over Pressure Protection > 1500 Psig 125% of Scale
  • Over Pressure Protection 1500 Psig - 5000 Psig 115% of Scale
  • Over Pressure Protection 10,000 - 20,000 Psig 110% of Scale
  • Over Pressure Protection to 150% of Scale Available
  • Siphons and Gauge Protectors Available
  • Isolation & Gauge Valves Available

¹Other case sizes available
²Higher accuracies available, see options codes
