PRECISION Instruments, Valves & Manifolds

"The New Standard"

LX Accessories



Download the Product Brochure

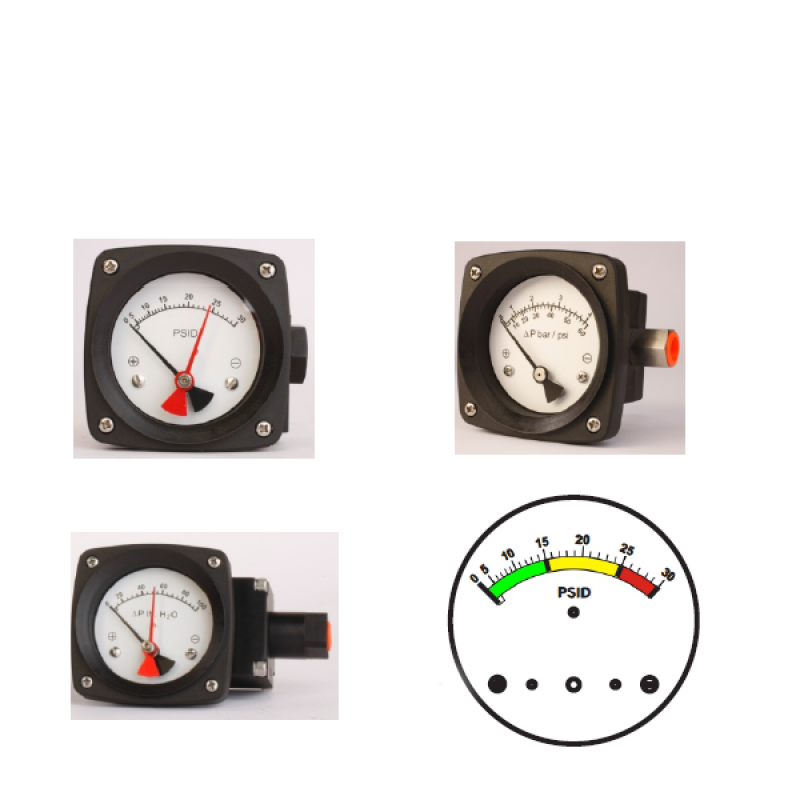

Follower Pointers
Secondary pointer in red follows primary pointer on increasing differential pressure, indicating highest differential pressure reading. Manual reset, ideal for filters, trainers, filter seperators, etc.

Dual Scales
Indicators available with dual scales covering Psid,
Bar, kPa, inches H2O and other ranges. Ask fordetails.





Colored Arcs
Colored arcs offer quick
visual confirmation for
field personnel of status
of monitored equipment.
Ask for details.





Flow Scales
Indicators available
calibrated to specific flow ranges, including square root scales and engineering units (GPM, etc.)



Other Options, specify when ordering:
NACE Certification available upon request.
MTRs available upon request.
Liquid Filling (effects accuracy)
Above options must be ordered with instrument.

Other Options:
Custom Logos
Diaphragm Seals (complete filled systems)
Mounting brackets, including pipemount
and bulkhead mount styles available for
most models. Ask your representative for
details.



3 & 5 Valve Manifolds for proper installation, isolation & commissioning of our differential pressure indicators & switches.


3 Valve Manifolds
6,000 Psig maximum working pressure, fully tested
1/2” FNPT Process inlet, 1/2” FNPT outlet to gauge.
Carbon steel: S3/RTKXX
316SS: S3/RTHXX
316L SS: S3/RTLXX


5 Valve Manifolds
Carbon steel: S3/RTKXX
316SS: S3/RTHXX
316L SS: S3/RTLXX



Needle Valves
High quality isolation valves to aid in installation of
differential pressure indicators and switches.
6,000 Psig maximum working pressure, fully tested
1/4” MNPT inlet, 1/4” FNPT outlet to gauge.
Carbon steel: P1M/M4W4TAXXK
316SS: P1M/M4W4TAXXH
316L SS: P1M/M4W4TAXXL


½” MNPT inlet, ½” FNPToutlet to gauge
Carbon steel: P1/M4W4TAXXK
316SS: P1/M4W4TAXXH
316L SS: P1/M4W4TAXXL
